Analyse Track File

analyse_track.Rd

Processes a track file (GPX or FIT) to extract route information, calculate metrics such as distance and elevation, and provide summary statistics or visualization.

Usage

analyse_track(file_path, return = "stats", plot_mode = "ggplot")

Arguments

file_path

Character string specifying the path to the track file (.gpx or .fit) or a web link to a route on Strava or RideWithGPS (GPX only).

return

Character string indicating the type of output to return. Options are:

  • "stats" (default): Returns a list of summary statistics

  • "plot": Generates a plot of the route and elevation profile. Supports additional modes via the plot_route() function (e.g., "ggplot" or "leaflet").

  • "data": Returns the processed track points data

plot_mode

Character string. The plotting mode to use when return = "plot". Options are:

  • "ggplot" (default): Uses ggplot2 for visualisation.

  • "leaflet": Uses the leaflet package to create an interactive map.

Value

Depending on the return parameter:

  • If "stats": A named list of route statistics

  • If "plot": Generates a plot

  • If "data": A data frame of processed track points with calculated metrics

Details

The function automatically detects the file format based on the file extension:

  • .gpx files are processed using read_gpx_track()

  • .fit files are processed using read_fit_track() (requires FITfileR package)

If a web link is provided for file_path, the function will automatically construct the appropriate GPX export URL, download the file to a temporary location, and process it. Note: web link support is only available for GPX files.

Examples

if (FALSE) { # \dontrun{
# Get route statistics from a local GPX file
stats <- analyse_track("path/to/file.gpx")

# Get route statistics from a local FIT file
stats <- analyse_track("path/to/file.fit")

# Get route statistics from a Strava link (GPX only)
stats <- analyse_track("https://www.strava.com/routes/3193200014155699162")

# Get route statistics from a RideWithGPS link (GPX only)
stats <- analyse_track("https://ridewithgps.com/routes/39294504")
} # }

# Use the example GPX file included in the package
example_gpx_path <- system.file("extdata", "icc_intro_ride.gpx", package = "gpxtoolbox")

# Analyse the example track file
stats <- analyse_track(example_gpx_path)
#> Reading GPX file: /home/runner/work/_temp/Library/gpxtoolbox/extdata/icc_intro_ride.gpx
print(stats)
#> $total_distance_km
#> [1] 42.81
#>
#> $total_elevation_gain_m
#> [1] 621.9
#>
#> $total_elevation_loss_m
#> [1] 556.3
#>
#> $max_elevation_m
#> [1] 143
#>
#> $min_elevation_m
#> [1] 29.9
#>
#> $start_point
#> [1] "43, Fieldway Crescent, Highbury, London Borough of Islington, Greater London, England, N5 1PU, United Kingdom"
#>
#> $end_point
#> [1] "Highgate Shoe Care, 367, Archway Road, Muswell Hill, London Borough of Haringey, Greater London, England, N6 5FJ, United Kingdom"
#>
#> $p25_point
#> [1] "Highwood Hill, Mill Hill, London Borough of Barnet, Greater London, England, NW7 4HN, United Kingdom"
#>
#> $p50_point
#> [1] "36, Camlet Way, Hadley Wood, London Borough of Enfield, Greater London, England, EN4 0LJ, United Kingdom"
#>
#> $p75_point
#> [1] "Lincoln Road, Colney Hatch, London Borough of Barnet, Greater London, England, N2 9EL, United Kingdom"
#>

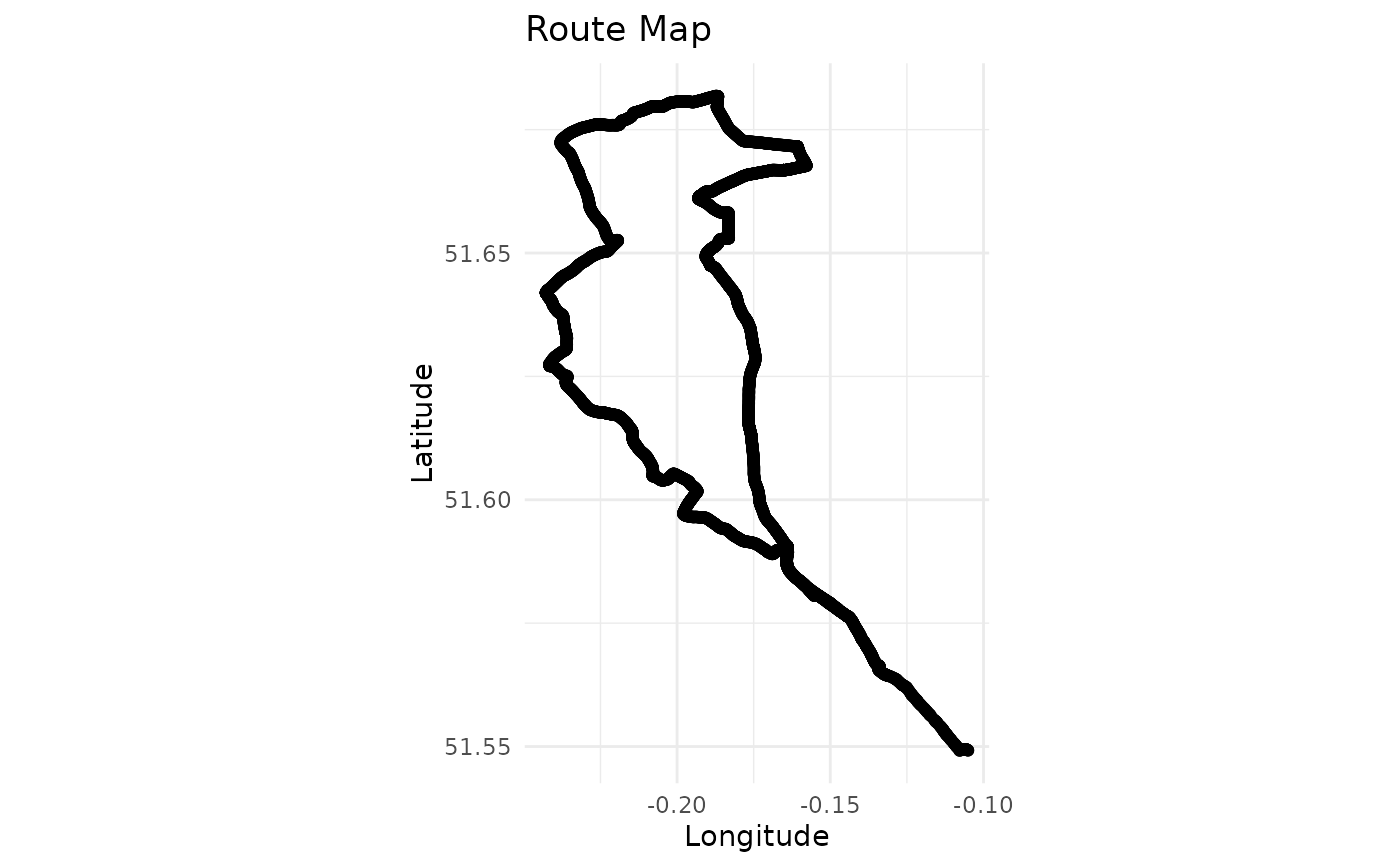

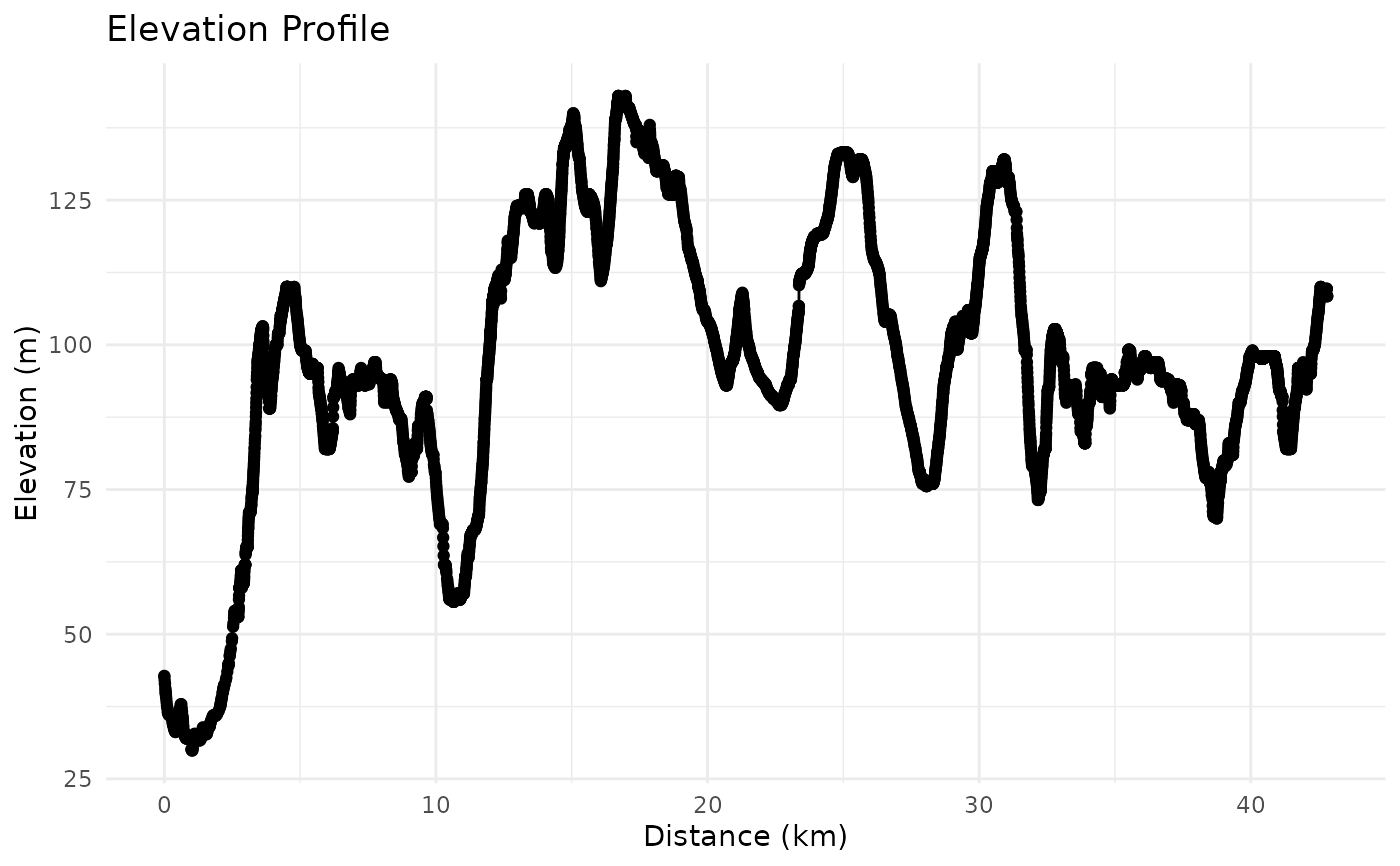

# Generate a plot of the example track file
analyse_track(example_gpx_path, return = "plot")
#> Reading GPX file: /home/runner/work/_temp/Library/gpxtoolbox/extdata/icc_intro_ride.gpx
